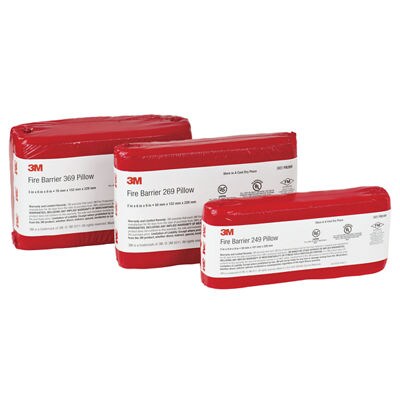

3M™ Fire Barrier Pillows FB249

Small, 2 in x 4 in x 9 in, 24/case

Where to Buy

Find A Distributor

- OR -

Shop 3M

3M ID	98-0400-5421-9
GTIN(UPC/EAN)	0 00 51115 16530 6

Browse Tested and Listed 3M Fire Protection Systems for Through Penetrations

Product Information:

Self-contained, intumescent product for use in a wide variety of through-penetration firestops including cable trays, conduit and blank openings.

Additional Information

Provides up to 3-hours of fire protection. Small pillow: 2 in. x 4 in. x 9 in. (50.8 mm x 101.6 mm x 241.3 mm). During a fire, 3M™ Fire Barrier Pillows intumesce (expand) and lock themselves into place, surrounding the penetrant(s) to help prevent the spread of smoke, fire and toxic gases. Easy-to-install 3M™ Fire Barrier Pillows are ideal for projects requiring re-enterability of the firestop system. Simply remove and replace pillows as needed. Any combination of small, medium, or large pillows can be used to firestop an opening provided the minimum compression requirements are met (minimum of 33% within the opening).

Product Document Downloads:

	3M™ Fire Barrier Pillow and 3M™ Fire Barrier Self-Locking Pillow - MSDS (United States)
	3M Fire Barrier Pillow - Data Sheet (PDF 227.7 K)

View additional product-related literature

Key Features:

Firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479)

Intumesces to form a hard char that tightly seals penetrations against flame spread, smoke and toxic gases

No wire mesh required

Graphite-free, does not conduct electricity

UL classified (meets code requirements)

Re-enterable and re-useable for new or retrofit installations

Available in three sizes (use a combination of sizes to fit a variety of openings)

Easy to install

Typical Applications:

3M™ Fire Barrier Pillows can be used for multiple applications in new or retrofit installations, acting as a through penetration firestop, heat shield and firebreak protection material. The pillows are typically used to firestop gypsum wall, block wall and concrete floor assemblies. 3M™ Fire Barrier Pillows are excellent for firestopping large blank openings or openings penetrated by conduit, cables or cable trays (up to two trays per opening).
