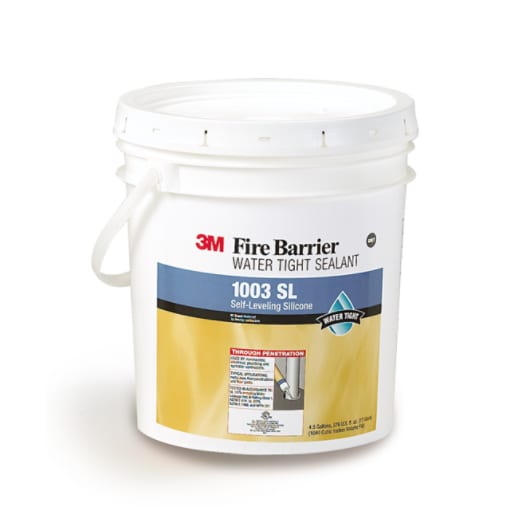

3M™ Fire Barrier Water Tight Sealant 1003 SL
4.5 gallon, Pail, 1/case
|
Product Color(s): Light Gray
Where to Buy
|
3M ID
|
98-0400-5281-7 |
|
GTIN(UPC/EAN)
|
5
00
51115
11540
5
|
Additional Product Size (SKU) Information:3M™ Fire Barrier Water Tight Sealant 1003 SL
|
Product Information:
Self-leveling, ready-to-use, single component, neutral cure, elastomeric silicone firestop that also acts as a barrier to water leakage and airborne sound transmission.
 Additional Information
For use in horizontal applications. Provides up to 3-hour fire protection. Light gray color, no mixing required. When properly installed, product provides up to 3-hour protection against the spread of fire, smoke and noxious gas in tested and listed systems. 3M™ Fire Barrier Water Tight Sealant 1003 SL meets UL Water Leakage Test, W Rating - Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479, provides acoustic benefits by minimizing noise transfer (STC-Rating of 56 when tested in a STC 56-rated wall assembly) and acts as a smoke seal for installations requiring the optional L-Rating. Meets the intent of LEED® VOC environmental regulations, meets International Building Code (IBC) and other key life safety building code requirements.
Product Document Downloads:
 View additional product-related literature
Key Features:
Perimeter Fire Barrier Tested up to 3 hours in accordance with ASTM E 2307 Firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479) &CAN/ULC S115 Fire Resistance tested for construction joint systems in accordance with ASTM E 1966 (UL 2079) Meets UL Water Leakage Test, W Rating - Class 1 requirements Compatible for use with CPVC piping Helps minimize sound transfer ± 31% compression/extension capability Applied with conventional caulking equipment (excellent caulk rate) Self-leveling, Halogen-free formula Excellent adhesion Excellent weatherability during construction Re-enterable/repairable
Typical Applications:
Typical horizontal (e.g. floor and edge-of-slab) firestop applications include blank openings, dynamic and static construction joints and through penetrations. Penetrating items that pass through fire-rated assemblies include: metallic pipes, non-metallic pipe, cables, cable tray, insulated pipes and combos.
|
|
| |
| |
| |
|
Contact 3M Fire Protection Products
For questions or help finding the right solution, contact an expert at 1-800-328-1687 option 7.
