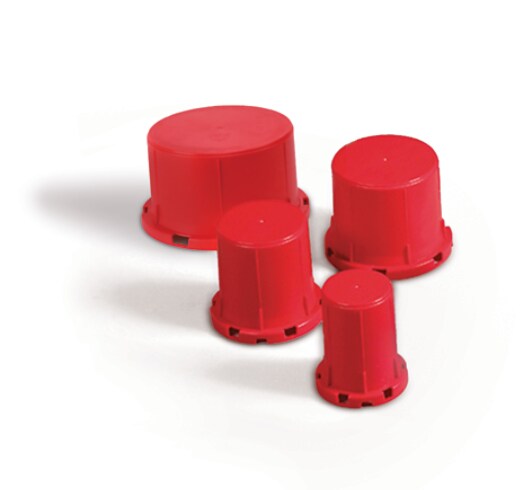

3M™ Fire Barrier Cast-In Device Height Adaptors
|
Product Color(s): Red
Where to Buy
Additional Product Size (SKU) Information:3M™ Fire Barrier Cast-In Device Height Adaptors
|
Product Information:
Height adaptors used in conjunction with either 2-, 3-, 4- or 6-inch (50.8-, 76.2-, 101.6-, or 127 mm) 3M™ Fire Barrier Cast-In Device. This device accessory increases the height of allowable concrete thicknesses by 4 in (101.6 mm) for installations requiring up to 12 in (304.8 mm) pour depths.
Product Document Downloads:
  View additional product-related literature
Key Features:
Firestop tested for up to 3 hours, when used in conjunction with the appropriate 3M™ Fire Barrier Cast-In Device, in accordance with ASTM E 814 (UL 1479)
Adds up to 4 inches (101.6 mm) to height of device
For special applications, can be modified to accommodate larger depths of concrete pour
UL Classified, universally recognized independent test agency
Factory made, helps assure consistent quality
Red color easily identifiable as fire-rated
Typical Applications:
Typically used in new installations when the concrete slab thickness will be greater than 8 inches (203.2 mm).
|
|
| |
| |
| |
|
