3M™ Fire Barrier Pass-Through Device Foam Plugs

4 in, Square, 24/case

3M(TM) Fire Barrier Pass-Through Device Foam Plugs
3M ID 98-0400-5559-6
GTIN(UPC/EAN) 0  00  51115  18794  0

Product Information:

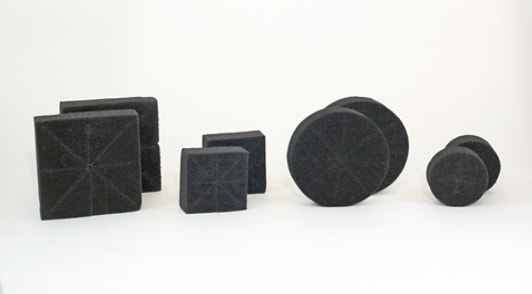

Replacement foam plugs for 4-inch Square 3M™ Fire Barrier Pass-Through Device. These foam plugs enhance the Cold and Hot smoke seal (device can achieve UL classified L-Rating with foam plugs and 3M™ Fire Barrier Sealant or Putty MP+, see system details).

Additional Information
3M™ Fire Barrier Pass-Through Devices use a unique fixed fire-rated intumescent material which works in conjunction with a foam smoke seal and optional mounting brackets. In the event of a fire, intumescent material quickly expands to seal the inside of the device, helping to prevent the spread of smoke and fire into other compartments. Optional mounting brackets and additional foam smoke seal replacements (device comes with 2 foam seals) sold separately. Square devices can be stacked in multiple device configurations for larger cable management and firestop requirements.

Product Document Downloads:

PDF 3M Fire Barrier Pass-Through Technical Data Sheet - Data Sheet (PDF 189.4 K)



Contact 3M Fire Protection Products

For questions or help finding the right solution, contact an expert at 1-800-328-1687 option 7.

Contact Fire Protection Products
