3M Fire Protection System Detail Illistration for ECP528

The system illustration on this page is for reference only. Please follow the parameters in the listed system when installing 3M Fire Protection Products.

F Rating3

System DescriptionIntertek

Min 1 in. steel conduit. Any cable fill approved. Raceway protection consists of endothermic mat, aluminum foil tape, steel banding, and caulking. 3 hour F rating. Also known as 3MUAF18001. Formerly ECP528.

System Details

PDFDesign No. 3MU/AF 180-01 - Application Guide (PDF 203.2 K)

System Drawings

CADSystem No. 3MU/AF 180-01 CAD - Illustration/Line Art (ACAD 306.0 K)

Primary Product Options

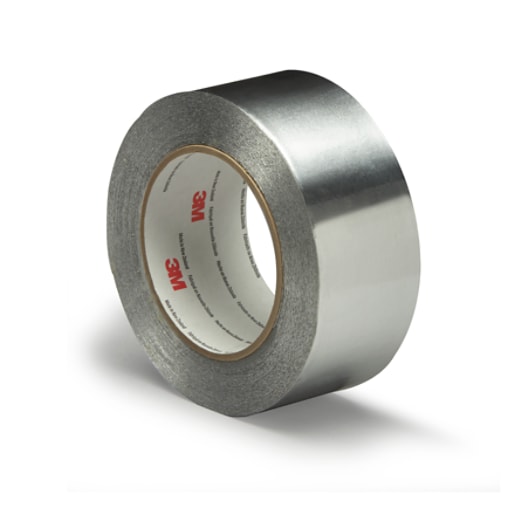

3M™ Aluminum Foil Tape 425

Designed to seal the cut edges of 3M™ Interam Mats and 3M™ Duct Wrap to complete the total encapsulation. 4.6-mil aluminum foil. Acrylic adhesive performs in high temperatures.

3M™ Fire Barrier Sealant CP 25WB+

High-performance latex-based intumescent firestop sealant. When properly installed, this product provides up to 4-hour fire protection in tested and listed systems. Firestops items penetrating through fire-rated construction assemblies. Dries to red color, no mixing required.

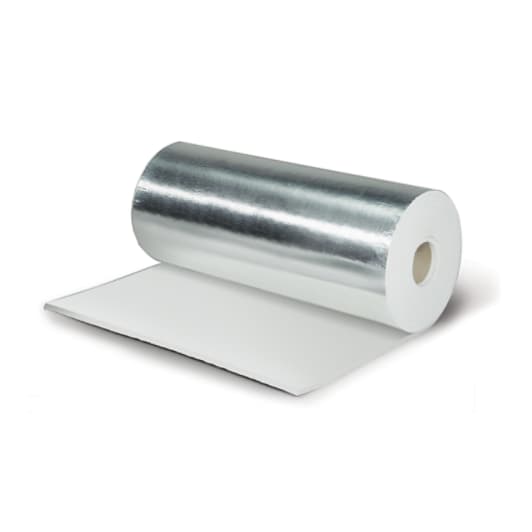

3M™ Interam™ Endothermic Mat E-5A-4

Blocks heat penetration by chemically absorbing heat energy to protect structural steel, cable trays and circuits in conduits. Provides up to 4-hour protection for structural steel and up to 3-hour electrical circuit protection. Made of a combination of organic/inorganic materials.

Secondary Product Options

3M™ Aluminum Foil Tape 425

Designed to seal the cut edges of 3M™ Interam Mats and 3M™ Duct Wrap to complete the total encapsulation. 4.6-mil aluminum foil. Acrylic adhesive performs in high temperatures.

3M™ Fire Barrier Sealant CP 25WB+

High-performance latex-based intumescent firestop sealant. When properly installed, this product provides up to 4-hour fire protection in tested and listed systems. Firestops items penetrating through fire-rated construction assemblies. Dries to red color, no mixing required.

Supplemental 3M Fire Protection Products

3M™ Aluminum Foil Tape 425

Designed to seal the cut edges of 3M™ Interam Mats and 3M™ Duct Wrap to complete the total encapsulation. 4.6-mil aluminum foil. Acrylic adhesive performs in high temperatures.



Contact 3M Fire Protection Products

For questions or help finding the right solution, contact an expert at 1-800-328-1687 option 7.
