3M™ EMS Extended Range 5` Disk Marker - Wastewater (Do Not Direct Bury) 1414-XR

3M ID  80630000273
3M(TM) Ext. Range Disk Marker Wastewater 1414-XR
3M(TM) Ext. Range Disk Marker Wastewater 1414-XR
3M™ Extended-Range 5' Disk Markers are not for direct buried applications and provide an easy, accurate method of locating flush-mounted facilities which become covered by backfill or other obstructions, such as snow or vegetation.
Contact Us

1-888-745-4350 Call us for technical support, product information, or help with any questions.

Email Us



Overview

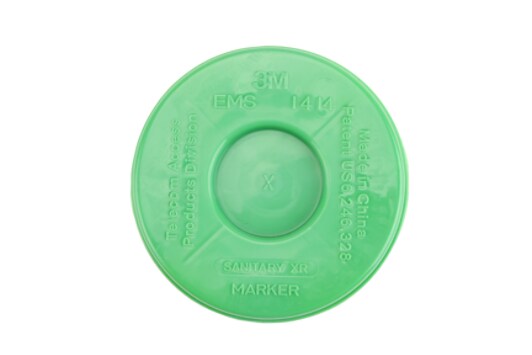

The 3M™ Disk Marker provides an easy and accurate method of precisely locating flush-mounted facilities, which become covered by backfill. The four-inch disk marker is easily fastened to the underside of non-metallic lids or covers over flush-mounted facilities, such as hand holes, manholes and other grade-level enclosures during construction and maintenance. Disk Markers are not intended for direct burial.

Specifications

 Color‎ Green‎
 EMS Caution Tape Finding Capability‎ N/A‎
 Marker Depth‎ 5 feet (1.5m)‎
 Marker Dimension (inch)‎ 4 inch Diameter x 0.38 inch Thick‎
 Marker Type‎ Disk‎
 Number of Frequencies‎ N/A‎
 Programmable/Passive‎ Passive‎
 Range‎ 0 to 5 Linear Foot‎
 RoHS 2011/65/EU Compliant‎ Undetermined‎
 RoHS EU Comments‎ Contact 3M for information
*Important RoHS information
 Trademark‎ 3M‎
