3M-Matic™ Case Sealer 700r3 With 3M™ AccuGlide™ 3 Taping Head

3M ID  70006650140    UPC#  00051111186251    3M Product Number  700r3

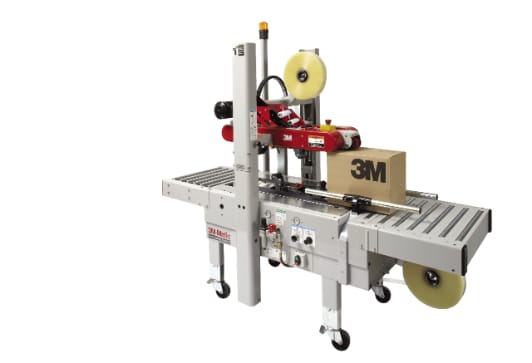

3M-Matic (TM) Case Sealer 700r High Speed
3M-Matic (TM) Case Sealer 700r High Speed
3M-Matic™ Case Sealer 700r3 is a random size case sealer that automatically adjusts for case height and width and is capable of sealing 19 boxes per minute, using tape widths from 48mm to 72mm wide.
  • Randomly adjusts to handle multiple box sizes.
  • Top and bottom belt drive for positive box conveying.
  • Rugged construction with 16-gauge welded steel frame and epoxy paint finish.
  • Need Help?

    Questions? We can help

    Contact Us



    Overview

    Seals case lengths of 6 inches and up, widths of 7 inch - 21.5 inch, heights 4.75 inch - 24.5 inch.

    Specifications

     Brand‎ 3M-Matic‎
     Color‎ Gray‎
     Drive System‎ Top and Bottom Belt‎
     Frame Material‎ Epoxy Powder Coated Steel‎
     Industry - Use‎ Food and Beverage‎ ,  General Industrial‎ ,  Medical‎ ,  MRO‎ ,  Paper‎ ,  Print‎
     Machine Type‎ Random Sized Boxes‎
     Maximum Box Height‎ 24-1/2 Inch ‎
     Maximum Box Weight‎ 85 Pound ‎
     Maximum Box Width‎ 21-1/2 Inch ‎
     Maximum Cases per Minute‎ 19 Cases Per Minute‎
     Minimum Box Height‎ 4-3/4 Inch ‎
     Minimum Box Length‎ 6 Inch ‎
     Minimum Box Width‎ 7 Inch ‎
     Operation‎ Operator folds flaps‎
     Product Form‎ Each‎
     Tape Width‎ 3 in‎
     Tape Width (metric)‎ 72 mm‎
