3M™ Wire Pulling Lubricant Wax `WLX-5, Five Gallons

3M ID  80610833669    UPC#  00054007417446    3M Product Number  WLX-5

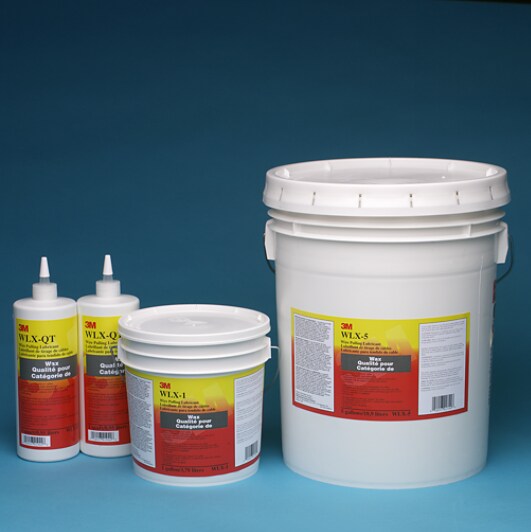

WLX Wire Pulling Lubricant Wax
WLX Wire Pulling Lubricant Wax
3M™ Wire Pulling Lubricant Wax is a gray wax based emulsion which has excellent lubricating properties for smooth low tension wire and cable pulling. It can be used and stored in temperatures as high as 194°F (90°C), making it the choice for hot weather applications. Case is 1 container.
Need Help?

Questions? We can help

Contact Us



Overview

The thick, consistent lubricant does not liquefy or separate with hot aging; it scoops and applies easily to wire and cable without runs or drips in hot temperatures; and it will not evaporate too soon after pulls. The lubricant`s low friction coefficient lessens the chance of wire damage from high pulling forces, wipes off the cable quickly and cleanly and leaves less residue in the conduit to block future pulls or prevent removal. Because Wire Pulling Lubricant Wax can be immersed in water for 30 minutes with minimal weight loss, it is also the choice for wet weather applications.

Specifications

ApplicationsLubricant
China RoHS - Below MCVYes
ColorGray
EU RoHS CompliantYes
Lubricant TypeWax
Size5 Gallons
Temperature Range10 - 194 Degrees F (12 - 90 Degrees C)

Manufacturing Origin: USA
The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
