3M™ WYE Resin Splice Kit 90-B1, 0 - 600 V, 10 per case

3M ID  80610981617    UPC#  00054007251156    3M Product Number  90-B1

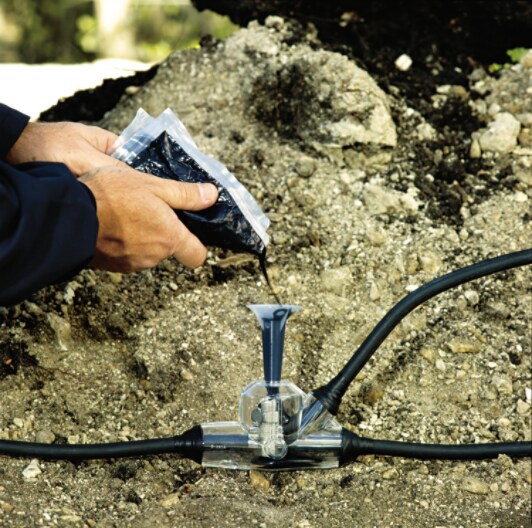

3M(TM) Scotchcast 90-B1 Wye Resin Splice Kit
3M(TM) Scotchcast 90-B1 Wye Resin Splice Kit
This kit insulates and moisture-seals wye splices made with the split-bolt type connectors on cables rated through 1kV.
Need Help?

Questions? We can help

Contact Us



Overview

Specifications

Cable TypePower Cable
China RoHS - Below MCVYes
Conductor Sizes1/0 AWG, 2/0 AWG
Crimped Maximum Conductor Sizes2/0 AWG
EU RoHS CompliantYes
Insulation O.D. Range0.50 - 0.812 Inch
Product TypeResin Splice
Run Cable Outside Diameter Range0.500 to 0.812 Inch
Shielding TypeNon-Shielded
Splice TypeResin
Split Bolt Maximum Conductor Sizes1/0 AWG
Tap Insulation Outside Diameter0.375 Inch
Voltage1 kV

Manufacturing Origin: USA
The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
