3M™ Vinyl Tape 471+ PN6405, 1/4 in x 36 yd, 144 per case Boxed

3M ID  70006704434    UPC#  00021200064050    3M Product Number  471+

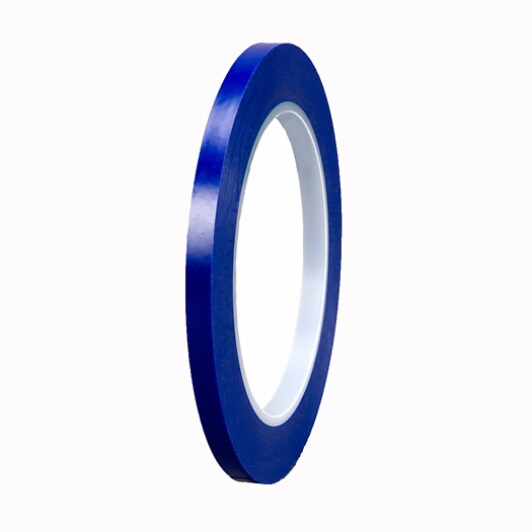

3M™ Vinyl Tape 471+ Indigo 1/4 in x 36 yd
3M™ Vinyl Tape 471+ Indigo 1/4 in x 36 yd
We developed 3M™ Vinyl Tape 471+ as a conformable vinyl tape with a versatile rubber adhesive and a moderately translucent backing that allows for accurate masking alignment with simple or complex patterns. Our tape provides clean removal without adhesive residue, even after a 30-min. bake cycle at 250 degrees F/121 degrees C.
  • Provides clean removal without adhesive residue after a 30-min. bake cycle at 250°F/121°C
  • Flexible and conformable tape creates fine paint lines for striping, color separation and complex designs
  • Semi-translucent backing allows for accurate alignment with simple and complex patterns
  • Resists lifting from compound surfaces, contours, depressions, and angles for precision paint-design results
  • Versatile rubber adhesives bonds and conforms to many surfaces including resins and lifts cleanly
  • Need Help?

    Questions? We can help

    Contact Us



    Overview

    Combining that with the other features and benefits, 3M Vinyl Tape 471+ brings performance and productivity for fine line masking in many critical painting applications. Sharp, clean paint lines for color separation are possible because it resists lifting and its versatile rubber adhesive bonds to a wide variety of surfaces, including resins, then lifts off cleanly from flat or compound surfaces We designed this tape to conform well to curves and to stretch and hold, even with a radius as tight as 1.5". It follows irregular designs to deliver sharp lines. Its moderate translucence allows for alignment where complex patterns are outlined. Our flexible vinyl backing is also abrasion-resistant and will protect adjacent surfaces in sanding operations. When finished, its one-piece removal preserves the sharp paint lines it helped create.

    Specifications

    Adhesion to Steel oz/in (N/100 mm)35 (38.3)
    Adhesive TypeRubber
    Backing MaterialVinyl
    Backing Thickness4.1 Milli-inch (mil)
    Backing Thickness (metric)0.1 Millimetre
    Brand3M
    ColorIndigo
    Elongation191 Percent
    Industry - UseAutomotive, General Industrial, Military & Government, MRO, Specialty Vehicle, Transportation
    Length36 Linear Yard
    Length (metric)32.91 Linear Metre
    Maximum Operating Temperature (Celsius)121 Degree Celsius
    Maximum Operating Temperature (Fahrenheit)250 Degree Fahrenheit
    Product FormRoll
    Shelf Life18 Month
    Tensile Strength lb/in (N/100 mm)13.9 (243)
    Total Thickness5.3 Milli-inch (mil)
    Units per Case144
    Width0.25 Inch
    Width (metric)6.35 Millimetre
