3M™ Splice Kit UF1 Standard, 1.8 in (45,7 mm) connector, 8.0 in (203,2 mm) heat shrink tube, 6 kits per case

3M ID  80610928980    UPC#  00054007429203    3M Product Number  UF1-Splice Kit-6 Kits

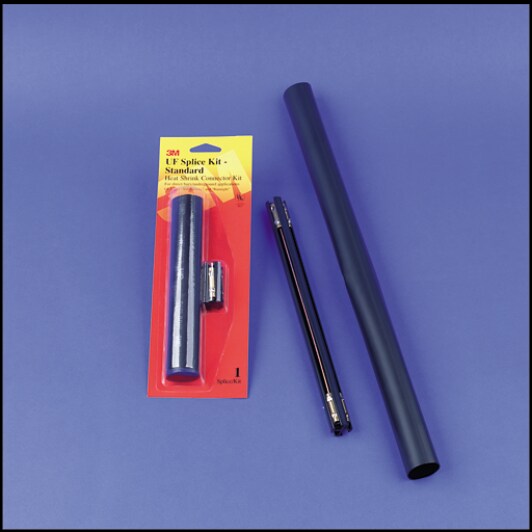

3M(TM) UF Splice Kit
3M(TM) UF Splice Kit
3M™ Splice Kit UF is designed to provide a reliable, moisture proof electrical connection for type U.F.-B underground feeder cable rated for 600 volts (Copper Wire Only) ranging from #14/3 without ground wire up to #8/3 with ground wire.
Need Help?

Questions? We can help

Contact Us



Overview

The UF Splice Kit consists of a connector-insulation assembly and a heat shrink tube. The connector assembly contains four cylindrical set screw connectors separated by a piece of vinyl insulation. The heat shrink tube is a heavy-wall, adhesive-lined tube. Underground Feeder (UF)-B cables are flat, and typically have three solid conductors without ground or two solid conductors with a ground. They range in size from 8 AWG to 14 AWG. The most common UF cable size is 10-14 AWG. The 3M UF Splice Kit is offered in two versions: UF1 Standard Kit includes a 1.8" length terminal connector and an 8" length of heavy-wall, adhesive-lined heat shrink tube. UF2 Stretcher Kit has an 11.7 inch terminal connector and a 20 inch length of heavy-wall, adhesive-lined heat shrink tube. The Standard Kit is used in most of the applications. The Stretcher Kit is used in situations where a 7-10 inch section of the cable has been damaged or destroyed. It eliminates two connectors and a short piece of cable during repair.

Specifications

China RoHS - Below MCVYes
Conductor Sizes10 AWG, 12 AWG, 14 AWG, 8 AWG
EU RoHS CompliantYes
Product TypeSplice
Voltage600 V
