3M™ SoundPro™ Datalogging Octave RTA Kit, SP-DL-2-1/1 1 kit/cs

3M ID  70071579810    UPC#  00051131485747    3M Product Number  SP-DL-2-1/1

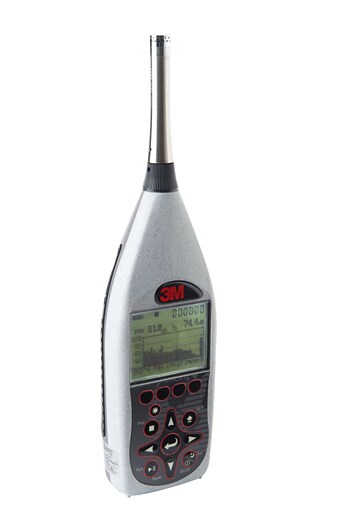

SoundPro Sound Level Meter Side Angle Product Image
The SoundPro™ DL`s powerful feature set makes it easy to document and analyze noise exposures. This hand-held instrument includes two virtual sound level meters to take full or third octave band real-time measurements while simultaneously measuring broadband sound and features time history data logging with 1 second to 60 minute intervals.
Benefits
  • Kit includes Class/Type 2 unit with 1/1 Octave RTA and standard accessories
  • Quick keypad calibration
  • Removable SD memory card
  • (2) virtual broadband SLMs
  • Complete session, study and time history data logging
    		•
    Need Help?

    Questions? We can help

    Contact Us

    Overview

    Support
    The SP-DL-2-1/1 Octave Datalogging RTA kit includes meter, Standard Accessories, Class 1, Summary Data Datalogging, 1/1 Octave RTA, Time History and Statistical Datalogging.

    Specifications

    Battery Life >10 hours
    Data Logging 1 Second to 60 Minute Intervals
    Exchange Rates 3, 4, 5, 6 dB
    Measurement Parameters 1/1 Octave, SPL, MAX, MIN, PEAK, Ln, Lavg/Leq, Sel, TWA, Taktm, DOSE, PDOSE, Ldn, CNEL, C-A, Exposure
    Measurement Range 10 to 140 Decibel
    Microphone Class/Type Type 2
    Net Weight 19 Ounce
    Power Source (4) "AA" Alkaline Cells, Optional NiMH Cell
    Product Type Sound Level Meter
    Response Fast, Impulse, Slow
    Standards/Approvals IEC 61326-1 (2005), IEC 61672-1 (2002), ANSI S1.4 (R2006), ANSI S1.43 (R2007), IEC 61260 (2001), ANSI S1.11 (R2009), CE, WEEE, RoHS
    Value Weighting A, C, F, Z
