3M™ Scotchcast™ Inline Resin Power Cable Splice Kit 82-A, 10-2 AWG, 1 per box, 10 per case

3M ID  80610981559    UPC#  00054007250166    3M Product Number  82-A

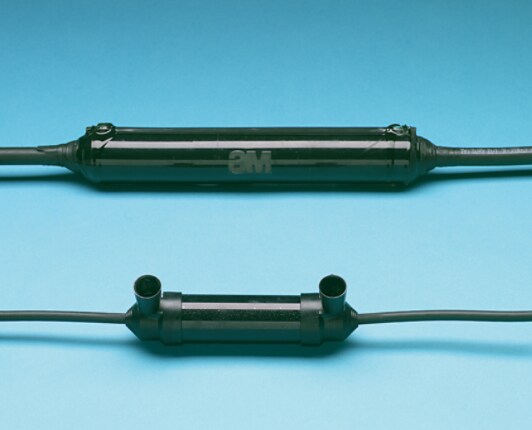

Scotchcast 82-A/82-A2 Resin
The 82-A series is UL Listed 486D, File Number E102356. Connector is not included, order separately. Each kit makes one splice.
Need Help?

Questions? We can help

Contact Us

Overview

Support
Use the 3M™ Scotchcast™ Inline Resin Splice Kits 82-A Series to insulate and seal single conductor, unshielded cable splices through 5 kV and multiple conductor cables through 1 kV.

Number of Conductors:
· 1 for 5 kV
· Multiple for 1 kV

Specifications

China RoHS - Below MCV Yes
Conductor Sizes for 5 kV 10 AWG, 2 AWG, 4 AWG, 8 AWG
EU RoHS Compliant Yes
Insulation O.D. Range 0.406 - 0.750 Inch
Product Series 82-A Series
Product Technology Resin
Product Type Splice
Shielding Type Multiple Conductor Portable Cable, Non-Shielded, Single Conductor Portable Cable
Splice Type Inline
Voltage 1 kV, 5 kV
