3M™ Scotchcast™ Electrical Insulating Resin 4C, (14.7 oz), 10 per case

3M ID  80610981682    UPC#  00054007431671    3M Product Number  4C

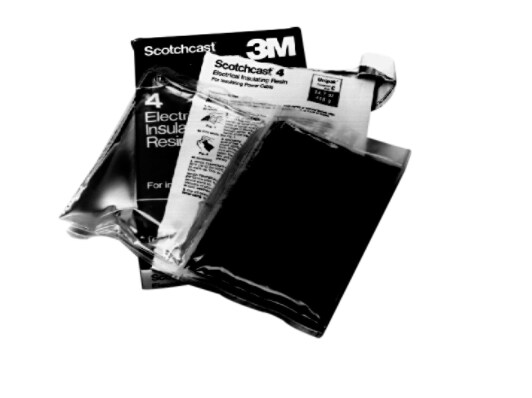

Scotchcast 4 Insulating Resin
Scotchcast 4 Insulating Resin
Use this resin to splice solid dielectric and oil-filled cables up to 8 kV. Flash point:149° C or higher.
Need Help?

Questions? We can help

Contact Us



Overview

3M™ Scotchcast™ Electrical Insulating Resin 4 Size C (14.7 oz) is a two-part epoxy insulating and encapsulating resin packaged in three sizes. This resin, mixed in its unique container bag, generates its own heat to cure. Its compatibly with solid and synthetic cable insulations and jackets makes 4 resin an excellent insulator and sealer for cable splicing. Use 3M™ Scotchcast™ Resin 4 to splice solid dielectric and oil filled cables up to 8 kV and to jacket high voltage splices through 69 kV. It is included in the 82 and 90-B1 Series splice kits. Gel time is 16 min. at 23°C.

Specifications

China RoHS - Below MCVYes
ColorBlack
Container Sizebag size C - 14.7 oz
Dielectric Strength500 Millivolt
Elongation4 Percent
EU RoHS CompliantYes
Gel Time16 Minutes at 73°F (23°C)
Hardness80 Shore D
MaterialEpoxy
Maximum Operating Temperature130 Degree Celsius
Minimum Operating Temperature0 Degree Celsius
Tensile Strength4900 Pound-Force Per Square Inch

Manufacturing Origin: USA
