3M™ Heavy-Wall Flame-Retardant Cable Sleeve HDT-1500-48A-Black, cable range of 3/0-400 MCM, 4 ft length, 20 per case

3M ID  80610294623    UPC#  00054007406525    3M Product Number  HDT-1500-48"-Black-20 Pcs

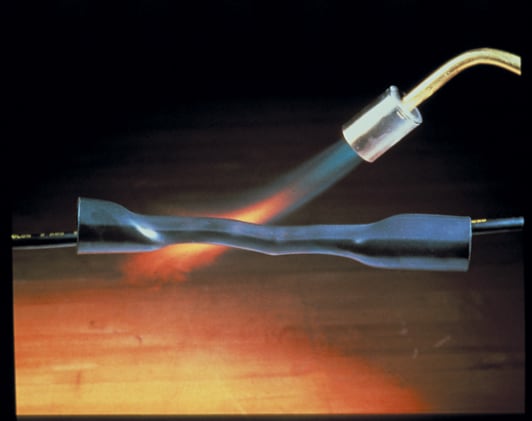

3M (TM) ITCSN Heavy-Wall Cable Sleeves for 1kV
3M™ HDT heat shrinkable cable sleeves provide reliable performance for electrical splices, connections and terminations, as well as mechanical and environmental protection. This cable sleeve comes in a quantity of 20 four foot lengths per case.
Need Help?

Questions? We can help

Contact Us

Overview

3M™ HDT heat shrinkable heavy-wall cable sleeves are cross-linked polyolefin. They are flame-retardant, highly split resistant and fast shrinking to provide rapid installation. The 48 in. (121,9 cm) sleeves come standard with a factory-applied adhesive/sealant. Order any of several packaging choices or look for the counter merchandiser assortment at a 3M authorized distributor and are not printed. MIL-DTL-23053/15, Class 1. Order in the size equivalent to expanded inside diameter required.

Specifications

China RoHS - Below MCV Undetermined
Color Black
EU RoHS Compliant Undetermined
Expanded Inner Diameter 1.50 Inch
Expanded Inner Diameter (metric) 38.1 mm
Length 48 Inch
Length (metric) 1.22 Linear Metre
Material Polyolefin
Operating Temperature Range (Celsius) -55 Degrees C to -100 Degrees C
Operating Temperature Range (Fahrenheit) -67 to 230 Degree Fahrenheit
Recovered Inner Diameter 0.50 Inch
Recovered Inner Diameter (metric) 12.7 mm
Shrink Ratio 3:1
Voltage Rating 1 kV
