3M™ Cold Shrink Insulator 8428-6M, Tape, Wire, Unishield, 1 kV, Standard, 10 per case

3M ID  80611231384    UPC#  00051128538289    3M Product Number  8428-6M

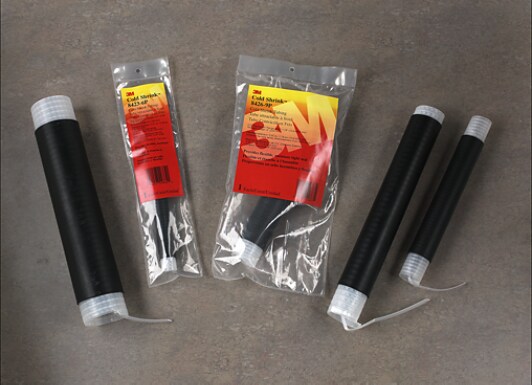

Cold Shrink 8420 Series
Cold Shrink 8420 Series
This splice meets requirements of ANSI C119-1 and Western Underground Guide 2.14 for secondary splices rated up to 1 kV. This size is listed for availability only and is not designed to be used as primary insulation. This tube is for conduit sealing an breakout. Use wire insulation/jacket diameters and connector O.D. for final sizing confirmation. Mastic pad is included for cable O.D. build-up.
Need Help?

Questions? We can help

Contact Us



Overview

3M™ Cold Shrink Tubes are designed using a unique Cold Shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwind) after positioning allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.

Specifications

Cable TypePower Cable
China RoHS - Below MCVYes
Conductor MaterialAluminum, Copper
Conductor SizesN/A
EU RoHS CompliantYes
Number of Conductors1
Product TypeSplice
Shielding TypeNon-Shielded, Tape Shield, UniShield®, Wire Shield
Splice TypeCold Shrink
Voltage1 kV

Manufacturing Origin: USA
The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
