3M™ Adhesive Lined Expanded Diameter CCT-0750-48A, Black, .75 in, 4 ft sticks, 20 sticks per carton

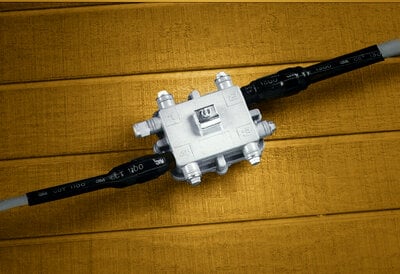

The 3:1 shrink ratio of 3M™ CCT Tubing provides easy installation and a tight fit, even where there are large differences between cable and connector diameters. Provided in standard lengths of 48", CCT tubing can be easily cut to the proper length for a particular job.

Characteristics:

Name	Value
Applicable SAE-AMS-DTL-23053 Specifications	20353/15 class 1
China RoHS - Below MCV	Yes
Color	Black
Dielectric Strength	500 Volt
Elongation	400 Percent
EU RoHS Compliant	Yes
Expanded Inner Diameter	3/4 Inch
Flammability Rating	Self-Extinguishing
Heat Shrink or Cold Shrink	Heat Shrink
Length	48 Inch
Non-Corrosive	Yes
Operating Temperature Range (Celsius)	-55 Degrees C to +110 Degrees C
pre-shrink fit over clearance	0.75 Inch
Recovered Inner Diameter	0.25 Inch
Shrink Range (min to max)	.25 to .75 Inch
Shrink Ratio	3:1
Tensile Strength	2000 Pound-Force Per Square Inch
