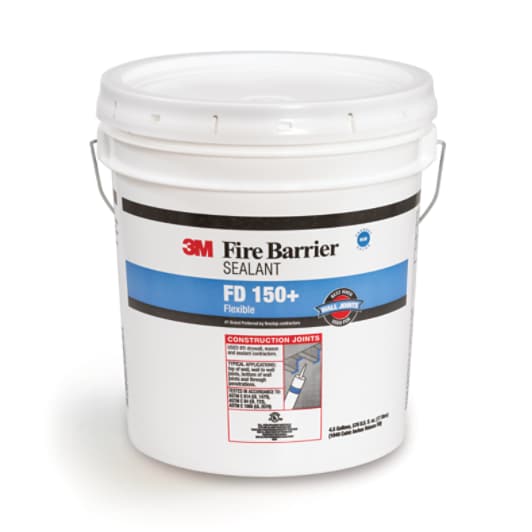

3M™ Fire Barrier Sealant FD 150+, Blue, 4.5 gallon, Pail, 1/case


3M™ Fire Barrier Sealant FD 150+, Blue, 4.5 gallon, Pail, 1/case
Click to Enlarge

Ready-to-use, gun-grade latex-based elastomeric sealant that cures upon exposure to the atmosphere to form a monolithic flexible firestop seal.


When properly installed, this product provides up to 4-hour fire protection in tested and listed systems. Firestops construction joints and through penetrations. Available in blue, red or limestone, no mixing required, ^+ 19% movement capability. When properly installed, sealant helps prevent the spread of fire, smoke and noxious gas. Remains elastomeric (compression/extension capability of ^+ 19%) and exhibits excellent adhesion to a full range of construction substrates. In addition, this product acts as an acoustic barrier by minimizing noise transfer (STC-Rating of 56 when tested in a STC 56-rated wall assembly), helps create a smoke seal for systems requiring the optional L-Rating, meets the intent of LEED® VOC environmental regulations, meets International Building Code (IBC) and other key life safety building code requirements.


3M ID: 98-0400-5316-1

GTIN(UPC/EAN): 5 00 51115 11575 7

Title Content Type File Type Size

MSDS (United States)

MSDS

PDF

28 KB

3M Fire Protection Products for Drywall Construction

Flyer

PDF

262 KB

3M™ Fire Barrier Sealant FD 150+ Product Data Sheet

Data Sheet

PDF

239 KB

3M™ Fire Barrier Sealant FD 150+

Brochure

PDF

604 KB

09-FireProtection EMD 2009 Catalog

Catalog

PDF

4.09 MB

Title Content Type File Type Size

3M ID: 98-0400-5316-1

Minimum Order Quantity: 1 PAIL



Imperial

Metric

Length

11.800 INCH

0.299 M

Width

11.800 INCH

0.299 M

Height

12.900 INCH

0.327 M

Gross Weight

59.0000 LBS

26.7619 KG
