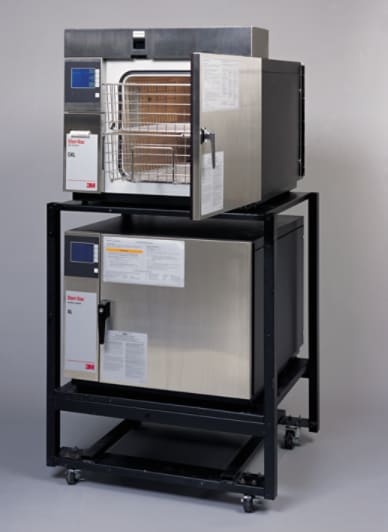

3M™ Steri-Vac Sterilizer/Aerator Model 5XL


3M™ Steri-Vac Sterilizer/Aerator Model 5XL
Click to Enlarge

A dual-cycle, 100% ethylene oxide (EO) gas sterilizer/aerator with a 4.8 cubic foot chamber. It can be installed in a wall or placed on a freestanding rack. Includes upper and lower baskets, and installation kit. A local exhaust hood is available.


3M™ Steri-Vac™ Sterilizer/Aerator 5XL, 1 Door

3M™ Steri-Vac™ Sterilizer/Aerator 5XL, 1 Door

Catalog number 5XLPB is a single door, dual cycle 4.8 cubic foot (135.9 liter) chamber EO gas sterilizer/aerator with relative humidity monitoring. Upper and lower baskets included.

3M™ Steri-Vac™ Sterilizer/Aerator 5XL, 2 Door

3M™ Steri-Vac™ Sterilizer/Aerator 5XL, 2 Door

Catalog number 5XLDPB is a double door, dual cycle 4.8 cubic foot (135.9 liter) chamber EO gas sterilizer/aerator with relative humidity monitoring. Upper and lower baskets included.



Its aeration cycle begins automatically after sterilization and a built-in printer records chamber temperature and vacuum, cycle number, temperature selected and aeration time for each load. Error and caution codes display if the cycle is interrupted.

The 5XL can be installed in-wall or placed on a free-standing stacking rack. Upper and lower baskets are included. A local exhaust hood is available for the model 5XL, as well as "Two-Door Pass-Through" feature for clean room applications.

Installation Kit

An installation kit is included with each new sterilizer. The kit includes vent line tubing, air line hose, air line shut-off valve, air line pressure gauge, plus all necessary unions, nipples, and fittings to connect sterilizer to customer-supplied vent and air line (#12-2326-7969-6).
