3M™ Motor Lead Pigtail Splice 5318, 5-8 kV, Non-Shielded, 2 AWG-250 kcmil (feeder), 2 AWG-250 kcmil (motor lead), 1 per case


3M™ Motor Lead Pigtail Splice 5318, 5-8 kV, Non-Shielded, 2 AWG-250 kcmil (feeder), 2 AWG-250 kcmil (motor lead), 1 per case
Click to Enlarge

Each kit makes three splices. Lugs not included in kits. Feeder of 1/0 AWG-250 kcmil (60-120 sq mm), motor lead 2 AWG-250 kcmil (35-120 sq mm).

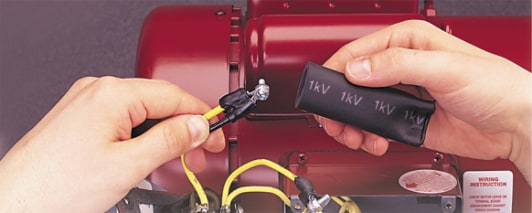

These kits are designed to be used with copper compression, one- or two-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ 30000


3M ID: 80-6107-3548-4
Title Content Type File Type Size

MSDS (United States)

MSDS

PDF

58 KB

16_MotorLead EMD 2009 Catalog

Catalog

PDF

1.09 MB

Motor Lead Pigtail Splice 5316-5319

Instructions/Manual

PDF

578 KB

Motor Lead Splicing Kits 5300 Series

Data Sheet

PDF

49 KB

Title Content Type File Type Size

3M ID: 80-6107-3548-4

Minimum Order Quantity: 1 KIT



Imperial

Metric

Length

14.200 INCH

0.360 M

Width

6.500 INCH

0.165 M

Height

5.000 INCH

0.127 M

Gross Weight

3.4000 LBS

1.5422 KG
