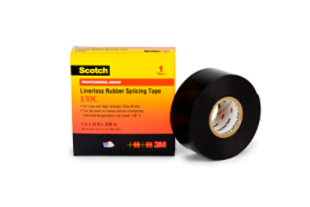

Scotch® Linerless Rubber Splicing Tape 130C
|
|
High voltage insulating; thermally dissipating; self-bonding. Primary electrical insulation for splicing all solid dielectric cables through 69kV.
|
|
|
|
|
Products and Purchase Options:
| Part Number | Width | Length | Thickness | Operating Temperature (Fahrenheit) | Emergency Overload Temperature (Fahrenheit) | Elongation |
| 130C-1-1/2X30FT | 1.5 Inch | 30 Linear Foot | 30 mil | Up to 194 Degree Fahrenheit | 266°F | 850 % |
| 130C-3/4X30FT | 0.75 Inch | 30 Linear Foot | 30 mil | Up to 194 Degree Fahrenheit | 266°F | 850 % |
| 130C-2X30FT | 2 Inch | 30 Linear Foot | 30 mil | Up to 194 Degree Fahrenheit | 266°F | 850 % |
| 130C-1X30FT | 1 Inch | 30 Linear Foot | 30 mil | Up to 194 Degree Fahrenheit | 266°F | 850 % |
| 130C-1X15FT | 1 Inch | 15 Linear Foot | 30 mil | Up to 194 Degree Fahrenheit | 266°F | 850 % |
| 130-1X10FT | 1 Inch | 10 Linear Foot | 30 mil | Up to 194 Degree Fahrenheit | 266°F | 850 % |
|
Specifications
| Adhesive Material | Rubber Resin |
| Agency Approvals | ASTM D-4325, HH-I-553C, ASTM D-4388 Type 1, 2 & 3 |
| Applications | Insulation |
| Backing Material | Ethylene Rubber, Ethlylene Propylene Rubber |
| Backing Thickness (metric) | 0.76 mm |
| Brand | Scotch |
| Breaking Strength | 7.5 lb/in |
| Color | Black |
| Compatible With | All Dome Closures |
| Dielectric Strength | 750 V/mil |
| Dielectric Strength (V/mil) | 750 |
| Elongation | 850 % |
| Elongation at Break | 850% |
| Emergency Overload Temperature (Celsius) | 130°C |
| Emergency Overload Temperature (Fahrenheit) | 266°F |
| Family | Scotch® Linerless Rubber Splicing Tape 130C |
| Insulation Resistance | >10^15 megohms |
| Length | 10 Linear Foot, 30 Linear Foot, 15 Linear Foot |
| Length (Metric) | 4.6 m, 3 m, 9.1 m |
| Liner/Linerless | Linerless |
| Material | Self-fusing Ethylene Propylene Rubber (EPR) |
| Operating Temperature (Celsius) | Up to 90 Degree Celsius |
| Operating Temperature (Fahrenheit) | Up to 194 Degree Fahrenheit |
| Product Family | Scotch® Linerless Rubber Splicing Tape 130C |
| Product Type | Rubber Tapes |
| RoHS 2011/65/EU Compliant | Yes |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption
*Important RoHS information |
| Rolls per Carton | 1 |
| Rolls per Case | 24, 12 |
| Self-Extinguishing | No |
| Self Sticking/Amalgamating | Yes |
| Shelf Life | 5 Year |
| Solution for | Access Network: FTTH/FTTB/CATV, Long-haul/Metro Loop Network: Outdoor |
| Specifications | ASTM D-4388 Type 1, 2 & 3, HH-I- 553C |
| Suitable for High Voltage | Yes, No |
| Tape Color | Black |
| Tape Grade | Premium |
| Tape Type | Rubber Insulating and Splicing |
| Tape Width (metric) | 19 mm |
| Tensile Strength | 250 psi |
| Thickness | 30 mil |
| Thickness (Metric) | 0.76 mm |
| Total Thickness | 0.76 mm |
| Trademark | Scotch, Scotch® |
| UV Resistant | Yes, No |
| Voltage Application | Low Voltage |
| Vulcanizing | Yes |
| Width | 0.75 Inch, 1.5 Inch, 1 Inch, 2 Inch |
| Width (Metric) | 25 mm, 19 mm |
|
|
|
|
