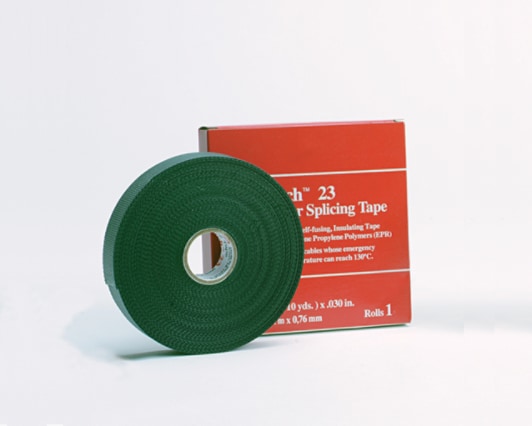

Scotch® 23 Electrical Tape, 1 in x 30 ft

3M ID  HT002001283    UPC#  00054007000594
23 Tape
Scotch 23 Electrical Tape is a highly conformable, self-fusing Ethylene Propylene Rubber based high-insulating voltage tape.
Need Help?

Questions? We can help

Contact Us

Overview

Scotch 23 Electrical Tape is a highly conformable, self-fusing Ethylene Propylene Rubber based high-insulating voltage tape. It is without halogen, it resists in the UV and ozone and is not vulcanized. It is compatible with all the synthetic insulations cables and with the paper insulations cables with migrant material. The turns of the tape weld together in an homogeneous form after application.

Specifications

Adhesive Material Rubber Resin
Backing Material Polyester lining
Length 9.15
Length (Metric) 9.15 Linear Metre
Maximum Operating Temperature (Celsius) 90 Degree Celsius
Operating Temperature 0 - 194 Degrees F (-18 - 90 Degrees C)
Product Family Scotch(R) Rubber Splicing Tape 23
Tape Color Black
Tape Grade Premium
Tape Length (metric) 9.15 m
Tape Type Insulating and Splicing
Tape Width 1 Inch
Tape Width (metric) 25 mm
Tensile Strength 8 Pound-Force Per Square Inch
Thickness 30 mil
Thickness (Metric) 0.76 Millimetre
Width 25 Millimetre
Width (Metric) 25 Millimetre
