3M(TM) Flexible Diamond Type YF Type B 6456J, M40 Micron Pattern B2

3M ID  60000087753    UPC#  00051135907290

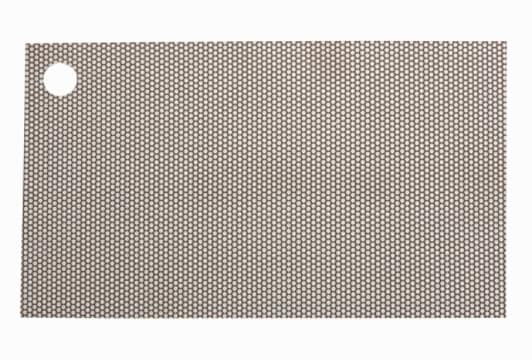

3M(TM) Flexible Diamond Type YF Type B 6456J
Diamond abrasive metal bonded in an open-dot pattern to a strong, low stretch, YF weight cloth backing. Excellent water resistance, with very close to zero caliper splice for centerless finishing where caliper control is important.
  • Open dot pattern provides durability and long life, when allowing performance to contours
  • Provides aggressive cutting with reduced loading
  • Excellent water resistance
  • Very close to zero caliper splice, for centerless finishing where caliper control is important
  • Use in roll form for superfinishing
  • Low stretch
Need Help?

Questions? We can help

Contact Us

Overview

For use on thermal sprays, ceramics, carbides, composites, chilled iron, non-ferrous metals, glass and other hard-to-grind materials. Flexible Diamond products are designed to help you achieve improved finishes on a wide range of hard-to-grind materials without sacrificing cut rates. Grade: M40.

Specifications

Applications Centerless & Cylindrical Grinding, Edge Seaming, Finishing, Grinding
Application Category Belt Sanding, Finishing/Polishing, Grinding/Metal Stock Removal
Backing Material Cloth
Backing Weight YF Weight
Color Yellow
Equipment - Machines Backstand, Bench Motors, Benchtop, Centerless Grinders, Offhand Grinders, Roll Grinders
Grade M40
Industries Aerospace, General Industrial, Metalworking, Transportation & Heavy Equipment
Mineral Type Diamond
Primary Application Metalworking, Woodworking, Composite & Advanced Materials
Substrates Carbide, Ceramic, Chilled Cast Iron, Chrome Carbide, Chrome Oxide, Granite, Hard Composite, HVOF, Nickel Based, Non-ferrous Metals, Soft Composite, Tungsten Carbide
Sub Industries Builders Hardware, Medical Instruments, Metal Fabrication, Metal Implants, Plating & Polishing, Plumbing Fixtures, Turbine Engines
