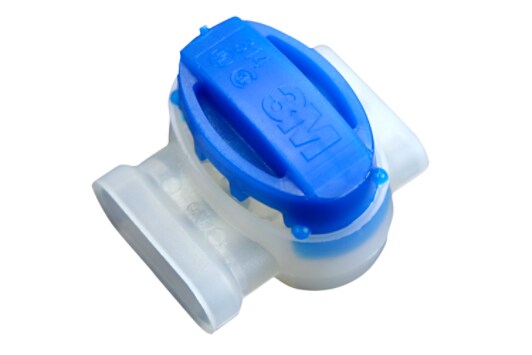

3M™ Scotchlok™ Electrical IDC 314-BIN, Pigtail, Self-Stripping, Moisture Resistant and Flame Retardant, Blue, 22-14 AWG, 1000 per case
3M ID
80610253678
UPC#
00054007092315
22 to 14 (0,5-1,5) AWG, Blue, 1000 per bin
Buy Online at Shop3M.com
The 3M™ Scotchlok™ Self-Stripping, Moisture Resistant Electrical Pigtail Connector 314 provides a moisture-resistant seal. Maximum insulation O.D.diameter of 0.155 inches (3,9 mm) and a operating temperature of 221(deg)F (105(deg)C). The suggested application tool for this connector is the E-9BM Crimping Tool.
Specifications
Agency Approvals
UL and CSA
Color
Blue
Conductor Sizes
22 - 14 AWG
Connection Type
Pigtail
Connector Style
Insulation Displacement
Flame Retardant
Yes
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 temperature
Maximum Recommended Voltage Rating
600
Maximum Wire Gauge
14 AWG
Minimum Wire Gauge
22 AWG
Packaging
Bulk
Product Family
IDC for Electrical Applications
