3M™ Red Dot™ Resting EKG Electrode 2330

3M ID  70200771338    UPC#  50707387195453    CAT#  2330

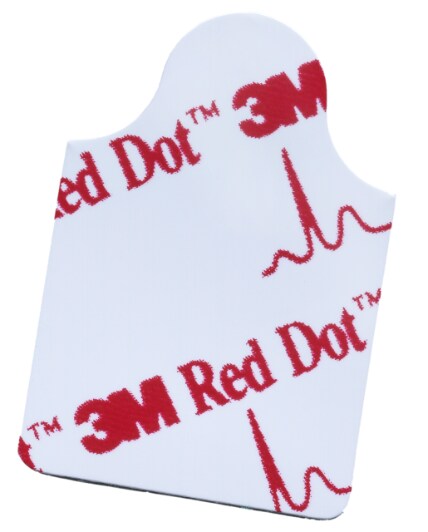

Red Dot Resting Electrode 2330, 9650
2cm x 2cm Resting EKG Electrode, Tab Style, (2330 electrode has less aggressive adhesive than the 2360), (10 Each/Card; 10 Card/Bag; 40 Bag/Case)
  • Tab-style electrode has pressure-sensitive conductive adhesive that is easy to apply and remove, and provides rapid and intimate skin contact to ensure high quality trace pickup.
  • Radiolucent to minimize the need to replace or remove electrodes in most radiological imaging applications (except 2352).
  • Extra large tabs (2330, 2360) for easy handling and attachment.
  • Semi-stiff backing (2330, 2360) reduces roll-off and minimizes electrode lift.
  • Snap-style electrode (2352) has foam backing that is stretchable, comfortable and gentle to the skin.
Need Help?

Questions? We can help

Contact Us

Overview

  • General ECG monitoring situations where skin moisture is an issue
  • For use in ER, OR, Stress Test, Cardiac Rehab and Echo-Cardiography departments

Specifications

Department Cardiac Rehab, Cath Lab, EMS/ER, ICU/CCU, OR
Electrode Size 1.2" x 0.8"
Electrode Type Resting
Gel Type Conductive Adhesive
Length 2 Linear Centimetre
Length (Metric) 2 cm
Material Plastic Film
Monitoring Event Echo-Cardio
Package Contents 100 Electrodes/Bulk Bag
Patient Adult
Product Type Electrode
Radiolucency Radiolucent
Skin Prep Included No
Skin Type Fragile, Normal
Width 2 Linear Centimetre
Width (Metric) 2 cm
