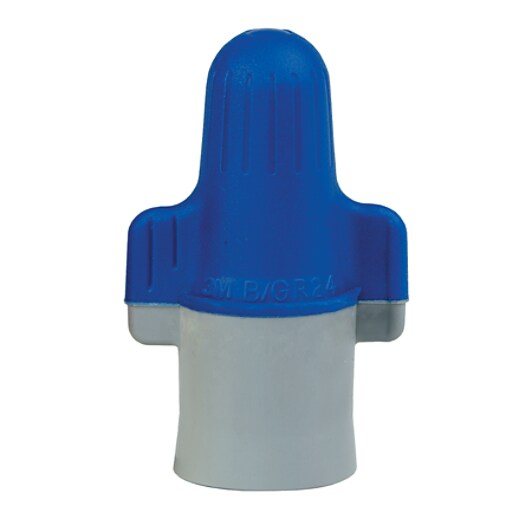

3M™ Performance Plus Wire Connector B/G+BOX, Blue/Gray, 14-6 AWG, 500 per Box

3M ID  80610984330    UPC#  00054007431503
Performance Plus Connectors
4#14-2#6-3#8 AWG, Blue with Gray skirt, 50 per box, 500 per case
Need Help?

Questions? We can help

Contact Us

Overview

B/G + covers both the large blue and gray connectors.This simplifies selection of the right connector for a wide range of wiring jobs. There's also less inventory to manage, and a better chance you'll have the connector you need to do every job.

Specifications

Agency Approvals UL, CE, IEC, and CSA
Boxes per Case 10
China RoHS - Below MCV No
Color Blue/Gray
Conductor Sizes 14 - 6 AWG
Connection Type Wire
Connector Style Twist On
EU RoHS Compliant No
Flame Retardant Yes
Maximum Operating Temperature (Celsius) 105 Degree Celsius
Maximum Operating Temperature (Fahrenheit) 221 temperature
Maximum Recommended Voltage Rating 600
Maximum Wire Gauge 6 AWG
Minimum Wire Gauge 14 AWG
Packaging Box
Product Family 3M™ Performance Plus Wire Connector
