3M™ DI-NOC™ Architectural Finishes FW-501, 4 ft x 164 ft.

3M ID  JR420072118

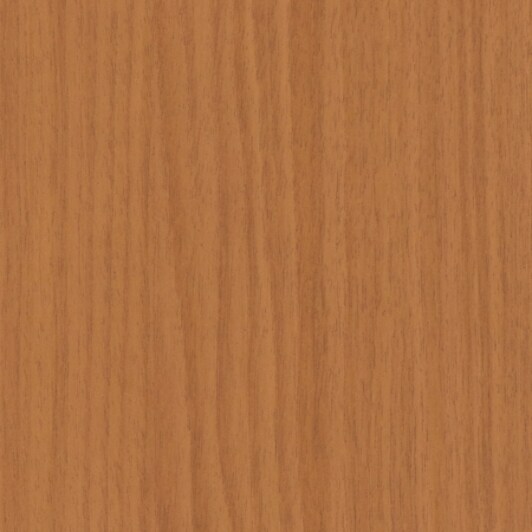

DI-NOC Pattern - FW-501, flat
3M™ DI-NOC™ Architectural Finishes are decorative surface finishes available in 500+ designs at a budget-friendly price. 3M DI-NOC designs offer the warmth of wood grain. The sleek feel of metal. The cool of natural stone. Specify them and you won't think faux - you'll think, fantastic.
  • Aesthetics - DI-NOC architectural finishes resemble natural materials and other types of surfaces to an astonishing degree. They deliver the look you want, at the price you need.
  • Remodel and Reuse - They go up fast, with less likelihood of error and waste, and bring life to existing assets.
  • Easy Application - 3M Comply™ Adhesive Technology is repositionable and virtually eliminates bubbles, simplifying and speeding application. Yet if bonds powerfully to many substrates.
Need Help?

Questions? We can help

Contact Us

Add a Sample

Overview

You should insist on DI-NOC™ Architectural Finishes because it is lightweight and self-adhering, and can be applied on site to the exsisting substrate, reducing labor and material cost compared to natural materials. With DI-NOC™ products, you create a whole new look, quickly and inexpensively, but not at the expense of aesthetics, thanks to its uncanny resemblance to natural materials. Use this product for both renovations or new construction.
  • Walls and wall panels
  • Ceilings
  • Fixtures
  • Elevators
  • Doors
  • Columns
  • Furniture
  • Backlit
  • Partitions
  • Curved surfaces
  • Flat surface - high gloss designs

Specifications

Adhesive Color Clear
Adhesive Controltac/Comply Comply™
Adhesive Type Pressure-sensitive
Applications Ceilings, Furniture, Lobbies and elevators, Partitions, Walls
Application Method Dry Application
Application Temperature +15°C to +38°C minimum (air and substrate)
Approval/Certification Flammability & IMO standards
Brand DI-NOC
Design Pattern FW-501
Design Pattern FW-501
Film Type Vinyl
Length 164 Linear Foot
Length (Metric) 50 Linear Metre
Liner PE coated kraft paper
Max. Warranty Interior 12 years
Opacity Opaque
Performance Level Premium
Product Code FW-501
Product Family Fine Wood
Product Line DI-NOC Architectural Surfaces Finishes
Removability Permanent
Surface Finish Matte
Surface Type 3 Dimensional, Flat
Thickness (film) 210-220 µm
Usage Interior
Width 4 Linear Foot
Width (Metric) 1.22 Linear Metre
