3M™ Cold Shrink QT-III Silicone Rubber Termination 7656-S-HSG-4 (High-Amp), 5-25/28 kV, 1.53-2.32 in (21,1-38,9 mm) Cable Insul. O.D., 1 termination/kit

3M ID  80610920094    UPC#  00054007422099

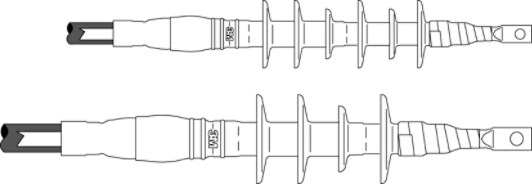

CS QT III 7650-S-HSG & 7660-S-HS
This 4 skirt termination has a 150 kV BIL rating and is for 5 to 25/28 kV cables. Kit Contents: 1 Hi-K, Tracking Resistant, Silicone Rubber Termination, 1 Hi-Amp Ground Braid, 1 Constant Force Spring, 2 Strips Sealing Mastic (black with white release liners, bagged), 1 Instruction Sheet
Need Help?

Questions? We can help

Contact Us

Overview

Documents
"

3M™ Cold Shrink QT-III Outdoor terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The unique step-core design combined with the built in Hi-K stress control and silicone sealing compounds means simpler installation on all types of cable. It has UV stability and track and erosion resistance. Plus its Hi-K stress control design delivers excellent BIL performance and lower surface stress resulting in a more compact termination. Through superior engineering, 3M™ Cold Shrink QT-III Outdoor terminations deliver maximum performance.

Conductor Size Range for

· 5 kV: 1750-2000 kcmil

· 8 kV: 1500-2000 kcmil

· 15 kV: 1250-2000 kcmil

· 25/28 kV: 900-1750 kcmil

"

Specifications

Product Family QT-III
