3M™ Cold Shrink QT-III Silicone Rubber Termination 7653-S-4-1/0, CN and JCN Cable, 5-25/28 kV, 0.72-1.29 in (18,3-32,8 mm) Cable Insul. O.D., 1 termination/kit

3M ID  80610839930    UPC#  00054007421931

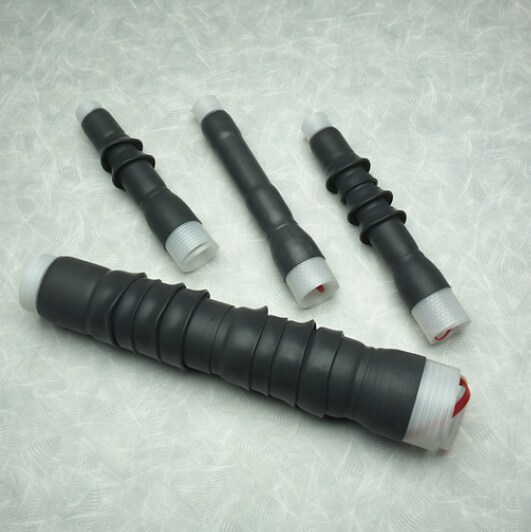

ColdShrink QT-III Terminations
3M™ Cold Shrink QT-III Silicone Rubber Termination 7653-S-4-1/0, 0.72-1.29 in (18,3-32,8 mm) Cable Insulation O.D.
Need Help?

Questions? We can help

Contact Us

Overview

3M™ Cold Shrink QT-III Outdoor terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The unique step-core design combined with the built in Hi-K stress control and silicone sealing compounds means simpler installation on all types of cable. it has UV stability and track and erosion resistance. Plus its Hi-K stress control design delivers excellent BIL performance and lower surface stress resulting in a more compact termination. Through superior engineering, 3M™ Cold Shrink QT-III Outdoor terminations deliver maximum performance.

Specifications

Breakout Boot No
Cable Type Compact/Solid, Stranded
China RoHS - Below MCV Undetermined
Conductor Sizes 1/0 AWG
EU RoHS Compliant Undetermined
Indoor/Outdoor Outdoor
Insulation Level 100%, 133%
Insulation Rejacketing No
Number of Skirts 4
Product Family QT-III
Shielding Type Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
Voltage 25/28 kV
