3M™ Bumpon™ Protective Products SJ5312 Clear, 3000 per case

3M ID  70006077294    UPC#  00021200192173
3M(TM) Bumpon(TM) SJXX12

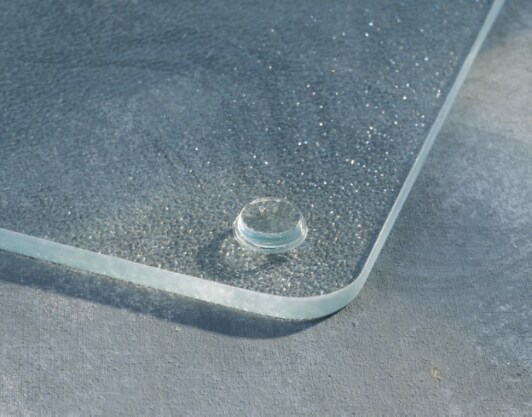

3M™ Bumpon™ Protective Product SJ5312 is a self-adhesive rubber bumper designed to be used as feet, stops and spacers. The Cylindrical - Flat Top provides excellent load bearing and anti-skid performance. Clear, 0.50 in wide x .140 in high.
  • All 3M™ Bumpon™ Protective Products feature a plasticizer-free, urethane composition which exhibits:
  • Easy application with 3M pressure sensitive adhesives.
  • High skid-resistance.
  • Won't scratch or stain surfaces.
  • Reduces vibration and noise.
  • Will not crack or harden.
Need Help?

Questions? We can help

Contact Us

Overview

Compatible with the special adhesive on 3M(TM) Scotchrap(TM) Tapes, it enhances adhesion. To be used with 3M(TM) Scotchrap(TM) All-Weather Corrosion Protection Tapes 50 and 51.
  • Use almost anywhere slamming, scratching, nicking, scuffing, marring, sliding, vibration, or noise could be a problem for your product.

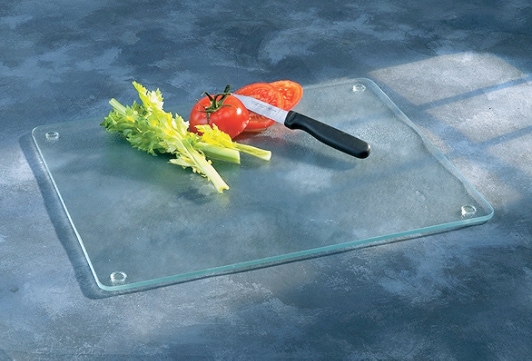

  • Feet on the bottom of small appliances, desktop or handheld electronic devices, electronic cabinetry, telephones, keyboards, foot pedals, scales, clocks, speakers, dispensers, and computers.
  • Stops for cabinet doors, lids, and drawers.
  • Spacers for picture frames to provide alignment; for electronics and automotive applications and aid in assembly.
  • Protectors to prevent damage in shipping, and keep parts from direct contact with each other.

Specifications

Adhesive Type Acrylic (A20)
Applications Surface Protection
Backing Material Polyurethane
Color Clear
Diameter 0.5 Inch
Diameter (Metric) 12.7 Millimetre
Hardness 75 Shore M
Height 0.14 Inch
Height (Metric) 3.6 Millimetre
Height-Thickness Range 0.100 - 0.199 in
Height-Thickness Range (metric) 3.0 - 3.9 mm
Market Segment Woodworking
Primary Liner 80# Super Calendered Kraft
Product Form Molded
Product Series SJ5312
Shape Cylindrical-Flat Top
Substrates Polycarbonate
Width-Diameter Range 0.500 - 0.599 in
Width-Diameter Range (metric) 10.0 - 19.9 mm

Documents

Technical Drawing
