3M™ Bumpon™ Protective Products SJ5009 Black, 1000 per case

3M ID  70070079754
3M(TM) Bumpon(TM) SJxx09 Black

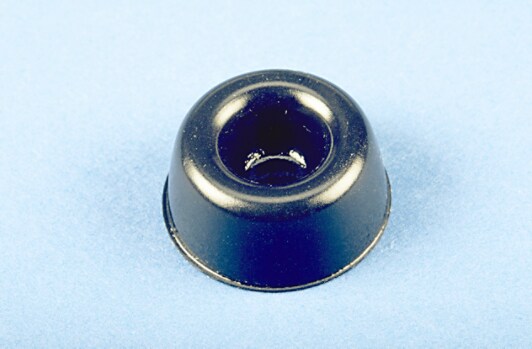

3M™ Bumpon™ Protective Product SJ5009 is a self-adhesive rubber bumper designed to be used as feet, stops and spacers. The Cylindrical - Concave Top used in custom applications. Black, 0.880 in wide by 0.400 in high.
  • All 3M™ Bumpon™ Protective Products feature a plasticizer-free, urethane composition which exhibits:
  • Easy application with 3M pressure sensitive adhesives.
  • High skid-resistance.
  • Won't scratch or stain surfaces.
  • Reduces vibration and noise.
  • Will not crack or harden.
Need Help?

Questions? We can help

Contact Us

Overview

Used for lead protection, dome retainer sheets, and for priting conductive circuitry. Same characteristics as 3M Single Coated Membrane Switch Spacer 7993MP except with a thicker white polyester film carrier
  • Use almost anywhere slamming, scratching, nicking, scuffing, marring, sliding, vibration, or noise could be a problem for your product.
  • Feet on the bottom of small appliances, desktop or handheld electronic devices, electronic cabinetry, telephones, keyboards, foot pedals, scales, clocks, speakers, dispensers, and computers.
  • Stops for cabinet doors, lids, and drawers.
  • Spacers for picture frames to provide alignment; for electronics and automotive applications and aid in assembly.
  • Protectors to prevent damage in shipping, and keep parts from direct contact with each other.

Specifications

Color Black
Diameter 0.88 Inch
Diameter (Metric) 22.4 Millimetre
Hardness 72 Shore M
Height 0.4 Inch
Height (Metric) 10.2 Millimetre
Height-Thickness Range 0.400 - 0.499 in
Height-Thickness Range (metric) 10.0 - 19.9 mm
Market Segment Electronics
Primary Liner 60# Super Calendered Kraft
Product Series SJ5009
Width-Diameter Range 0.800 - 0.899 in
Width-Diameter Range (metric) 20.0 - 29.9 mm

Documents

Technical Drawing
