3M™ Riveters Tape 685 Transparent with Green Adhesive, 1 in x 36 yd, 36 per case Bulk

UPC# 00021200035081    3M Product Number 685    3M ID 70002636051

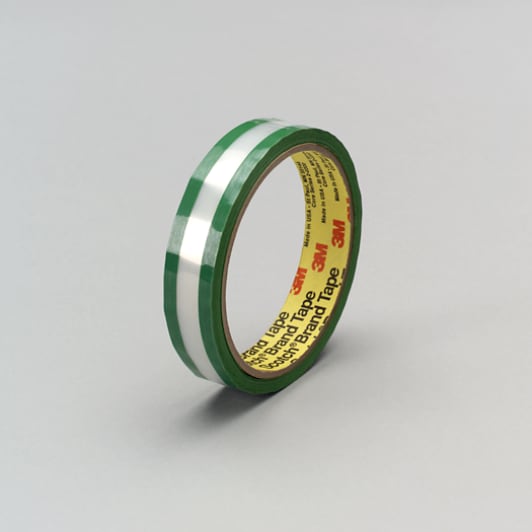

3M(TM) 685 Riveting Tape
3M™ Riveters Tape 685 Transparent Film with Green Adhesive, 1.7 mils (.043 mm) Polyester film with a rubber-strip coated along edges of tape only and tack-free center Window
  • Hold rivets in place during riveting
  • Easy visibility of rivets
  • Non-stretch backing
  • Riveting, holding
  • Aerospace, marine, specialty vehicle, transportation, automotive, metal fabrication
    		•
    Need Help?

    Questions? We can help

    Contact Us

    Overview

    Support
    Used in holding rivets in place both prior to and during riveting, no adhesive transfer to rivet heads, polyester film resists shattering and slivering

    Specifications

    Adhesion to Steel oz/in (N/100 mm) 30 (33)
    Adhesive Type Rubber strip coated along edges of tape only
    Application Holding rivets in place
    Backing Material Polyester
    Backing Thickness 1 Milli-inch (mil)
    Backing Thickness (metric) 0.02 Millimetre
    Brand 3M
    Color Green
    Diameter 3.65619
    Industry - Use Automotive, Metalworking, Military & Government, Specialty Vehicle, Transportation
    Length 36 Linear Yard
    Length (metric) 32.91 Linear Metre
    Maximum Operating Temperature (Fahrenheit) 150 Degree Fahrenheit
    Minimum Operating Temperature (Fahrenheit) -20 Degree Fahrenheit
    Product Form Roll
    Shelf Life 18 Month
    Tensile Strength lb/in (N/100 mm) 19 (330)
    Total Thickness 1.7 Milli-inch (mil)
    Units per Case 36
    Width 1 Inch
    Width (metric) 25.40 Millimetre
