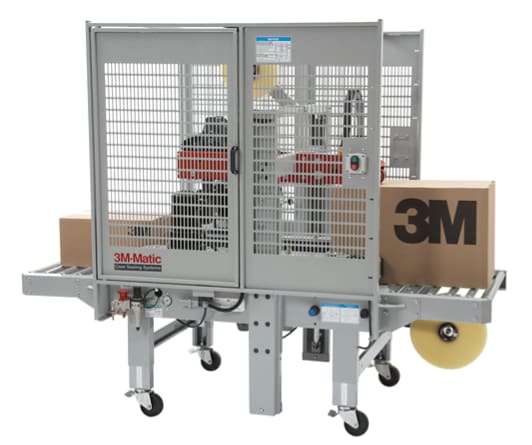

3M-Matic™ Case Sealer 800r3 with 3M™ AccuGlide™ 3 Taping Head

UPC# 00051111072394    3M Product Number 800r3    3M ID 70006653490
3M-Matic™ Case Sealer 800r Random Size Case Sealer
3M-Matic™ Case Sealer 800r3 with 3M™ AccuGlide™ 3 Taping Head is a random case sealer automatically adjusts for case size. Top and bottom seal at rates up to 15 cases/minute, using tape widths from 48 mm to 72 mm wide.
  • Consistent durable case taper that randomly adjusts to handle multiple box sizes.
  • Side belt drive for positive box conveying.
  • Rugged construction with 16-gauge welded steel frame and epoxy paint finish.
  • Food and beverage, paper and print, distribution centers, pharmaceutical and general industrial.
  • Semi-automatic random case sealing
    		•
    Need Help?

    Questions? We can help

    Contact Us

    Overview

    Support
    Seals case lengths of 8 inches and up; widths of 5.25 inches - 19.5 inches and heights from 4.75 inches to 19.5 inches.

    Specifications

    Brand 3M-Matic
    Color Gray
    Drive System Side Belt
    Frame Material Epoxy Powder Coated Steel
    Industry - Use Food and Beverage, General Industrial, Medical, MRO, Paper, Print
    Machine Type Random Sized Boxes
    Maximum Box Height 19-1/2 Inch
    Maximum Box Weight 85 Pound
    Maximum Box Width 19-1/2 Inch
    Maximum Cases per Minute 19 Cases Per Minute
    Minimum Box Height 4-1/4 Inch
    Minimum Box Length 8 Inch
    Minimum Box Width 5-1/4 Inch
    Operation Operator folds flaps
    Product Form Each
    Tape Width 3 Inch (72 mm)
