3M™ Double Coated Tape 9629PC Clear, Custom Roll Sizes Available

3M Product Number 9629PC    3M ID 70000216237

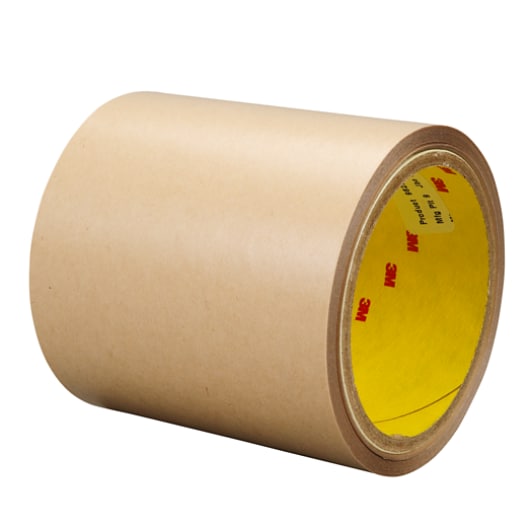

3M(TM) Double Coated Tape 9629PC
4.0 mil 360 high performance quick stick acrylic adhesive double coat with a clear polyester (PET) carrier on a 4.2 PCK 58 lb paper liner
  • 2 mil double coated tape on a PET polyester carrier with a 58 lb polycoated kraft PCK paper liner.
  • Double coated tape has exceptional adhesion properties and bonds well to high and low surface energy plastics HSE LSE such as HDPE, PP, ABS, polycarbonate, PMMA; powder coated paints. Has excellent quick stick properties.
  • Good solvent resistance and excellent moisture resistance. Adheres well to a variety of plastics such as ABS, HDPE, PP, PMMA, acrylic and polycarbonate. Ideal for electronic devices.
  • Electronics, General Industrial, Appliances, Medical Devices, Power Tools, Automotive, Transportation, Aircraft, Airplane
  • This is good for adhering, joining, affixing, bonding, mounting, holding, laminating, and attaching. Lens attachment in mobile devices such as cell phones, pagers, computers, nameplates for computers, etc.
    		•
    Need Help?

    Questions? We can help

    Contact Us

    Overview

    Support
    More strength with less adhesive. Quick stick properties to many LSE and HSE substrates. Lowest ooze. Low odor. Excellent convertibility and die-cutting capabilities.

    Specifications

    Adhesion to Foam 9
    Adhesion to HSE 10
    Adhesion to LSE 10
    Adhesion to Metal 10
    Adhesive Peel Initial 10
    Adhesive Peel Ultimate 10
    Back-Side Adhesive Thickness (mils) 1.75 Milli-inch (mil)
    Back-Side Adhesive Type 360 Quick Bonding Acrylic
    Brand 3M
    Carrier Color Clear
    Carrier Material Polyester Film
    Carrier Thickness (mils) 0.5 Milli-inch (mil)
    Chemical Resistance 8
    Color Clear
    Face-Side Adhesive Thickness (mils) 1.75 Milli-inch (mil)
    Face-Side Adhesive Type 360 Quick Bonding Acrylic
    Humidity Resistance 9
    Industry - Use Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Specialty Vehicle, Transportation
    Master Size Length 180 Linear Yard
    Master Size Width 54 Inch
    Moisture Resistance High
    Plasticizer Resistance Low
    Primary Liner 58# Polycoated Kraft Paper (PCK)
    Primary Liner Color Tan
    Primary Liner Thickness (mils) 4.2 Milli-inch (mil)
    Product Form Roll
    Product Sub- Sub-Category Film Carrier
    Shear Strength at 72 Degrees F (22 Degrees C) 9 Pound-Force Per Square Inch
    Size Custom
    Solvent Resistance 8
    Temp Resistance-- Lower (deg F) -40 Degree Fahrenheit
    Temp Resistance-- Upper (deg F) 350 Degree Fahrenheit
    UV Resistance Medium
