3M™ Adhesive Transfer Tape Double Linered 8153LE, 8153le 24 in x 36 in sheets, 100 per case

UPC# 00021200372360    3M Product Number 8153LE    3M ID 70016063615

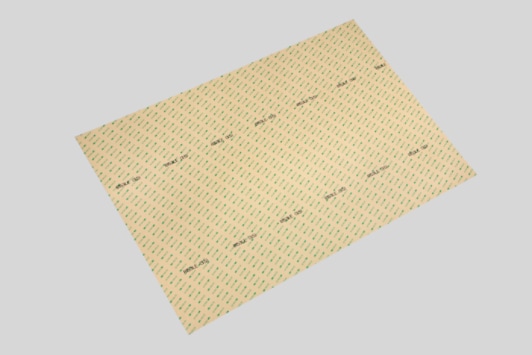

3M(TM) Adhesive Transfer Tape Double Linered 8153LE
3M™ Adhesive Transfer Tape Double Linered 8132LE is a 2.0 mil 300LSE high strength acrylic adhesive double linered with 4.2 mil 58 lb polycoated kraft and 6.2 mil 83 lb polycoated kraft.
  • 3.5 mil double linered version of 3M Adhesive Transfer Tape 9453LE. For selective die-cutting. 58 lb and 83 lb polycoated kraft paper liners.
  • Double linered adhesive tape has exceptional adhesion properties and bonds well to high and low surface energy plastics HSE LSE such as HDPE, PP, ABS, polycarbonate, PMMA; powder coated paints and lightly oily metals. Has excellent shear properties.
  • Good solvent resistance and excellent moisture resistance. Adheres well to a variety of plastics such as ABS, HDPE, PP, PMMA, acrylic and polycarbonate. Ideal for electronic devices.
  • Electronics, General Industrial, Appliances, Medical Devices, Power Tools, Automotive, Transportation, Aircraft Airplane
  • This is good for adhering, joining, affixing, bonding, mounting, holding, laminating, and attaching. Lens attachment in mobile devices such as cell phones, pagers, computers, nameplates for computers, etc.
  • Need Help?

    Questions? We can help

    Contact Us

    Overview

    Double-linered version of 3M Adhesive Transfer Tape 9471LE. For selective die-cutting. Application to smooth surfaces. Bonds graphics to powder coatings, LSE plastics and oily materials.

    Specifications

    Adhesion to Foam 1
    Adhesion to HSE 10
    Adhesion to LSE 10
    Adhesion to Metal 9
    Brand 3M
    Chemical Resistance 7
    China RoHS - Below MCV Yes
    Color Clear
    EU RoHS Compliant Yes
    Face-Side Adhesive Thickness (mils) 3.5 Milli-inch (mil)
    Face-Side Adhesive Type 300LSE Low Surface Energy Acrylic
    Humidity Resistance High
    Industry - Use Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Specialty Vehicle, Transportation
    Length 36 Inch
    Length (metric) 0.91 Linear Metre
    Master Size Length 36 Inch
    Master Size Width 24 Inch
    Meets Specifications UL
    Moisture Resistance High
    Plasticizer Resistance Low
    Primary Liner 58# Polycoated Kraft Paper
    Primary Liner Thickness (mils) 4.2 Milli-inch (mil)
    Product Form Sheet
    Product Sub- Sub-Category Double Liner
    Secondary Liner 83# Polycoated Kraft Paper
    Secondary Liner Thickness (mils) 6.2 Milli-inch (mil)
    Solvent Resistance 7
    Temp Resistance-- Lower (deg F) -40 Degree Fahrenheit
    Temp Resistance-- Upper (deg F) 300 Degree Fahrenheit
    Units per Case 100
    UV Resistance Medium
    Width 24 Inch
    Width (metric) 609.60 Millimetre
