Scotch® Vinyl Mastic Pad 2200-6-1/2x4-1/2, 125 Mil, 6-1/2 in x 4-1/2 in (165 mm x 114 mm), 50 per case

3M ID  80610087118    UPC#  00054007212966    3M Product Number  2200-6-1/2X4-1/2

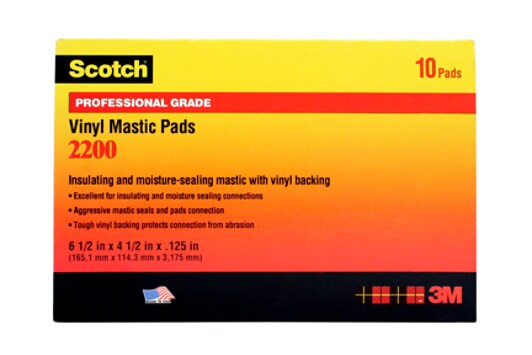

Scotch(R) 2200 Vinyl Mastic Pads
This 125 mil pad is self-fusing, rubber-based insulating compounds laminated to a flexible, with an all-weather grade PVC backing. Inner unit pack of 10 pads per box with 50 pads per case.
Need Help?

Questions? 1-866-556-5712

Contact Us

Overview

This Scotch® Vinyl Mastic Pad 2200 resistant to abrasion, moisture, alkalis, acid, copper corrosion, UV and varying weather conditions. This conformable pad is for insulating, moisture-sealing and pad connections up to 600V. Compatible with solid dielectric cable insulation, it is temperature-rated to 176°F (80°C).

Specifications

Adhesive Material Mastic
Backing Material Polyvinyl Chloride
Breaking Strength 20 Pound Per Inch (Of Width)
China RoHS - Below MCV Yes
Dielectric Strength (V/mil) 300 V/mil
EU RoHS Compliant Yes
Operating Temperature Range (Celsius) -18 to 38 Degrees Celsius
Operating Temperature Range (Fahrenheit) 0 to 100 Degree Fahrenheit
Pad Length 6.5 Inch
Pad Thickness 125 Milli-inch (mil)
Pad Width 4.5 Inch
Product Family Scotch® Vinyl Mastic Tapes 2200 and 2210
Tape Color Black
Tape Grade Premium
Tape Type Sealing and Insulating Mastic
