3M™ Flexible Polyolefin Heat Shrink Tubing EPS-200-3/16-48-Black, 48 in Length sticks, 48 ft per carton

3M ID  80610787683    UPC#  00051135368671    3M Product Number  EPS-200-3/16-48-BLACK-BOX

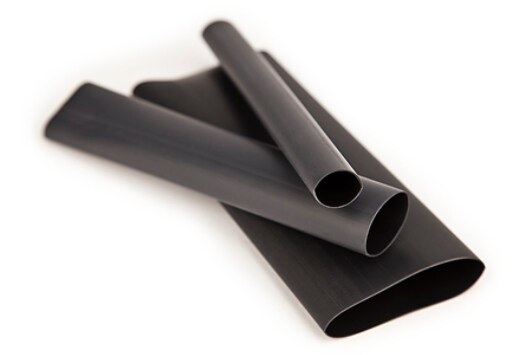

Heat Shrink Multiple-Wall, Flexible Polyolefin Tubing EPS-200
3M™ Tubing EPS-200 offers convenient protection of electronic components, wire splices or bundling of wires. This tubing comes in a quantity of 48 ft per full carton.
Need Help?

Questions? 1-866-556-5712

Contact Us

Overview

3M™ Heat Shrink Tubing EPS-200 is a 2:1 thin-wall tubing offering the advantages of integral adhesive-lined construction. The tubing is made from a flame-retardant, flexible polyolefin with a thin layer of special thermoplastic adhesive. The heat-shrinkable outer wall is selectively cross-linked while maintaining the high flow and excellent adhesion of the inner sealant liner.

Specifications

Agency Approvals UL Recognized
China RoHS - Below MCV Yes
Color Black
Dielectric Strength 800 Volt
Elongation 450 Percent
EU RoHS Compliant Yes
Expanded Inner Diameter 0.187 Inch
Flammability Rating UL 224 All Tubing Flame Test [jacket]
Length 48 Inch
Material Adhesive-lined, Flexible Polyolefin
Mil Spec AMS-DTL-23053/4, Class 2
Non-Corrosive Yes
Operating Temperature Range (Celsius) -55 Degrees C to +135 Degrees C
Recovered Inner Diameter 0.093 Inch
Shrink Ratio 2:1
Tensile Strength 2100 Pound-Force Per Square Inch
Tubing Type Adhesive-Lined, Environmental Protection Sleeve-Flexible
Tubing Types Dual Wall (Adhesive)
UL File Number E-39100
