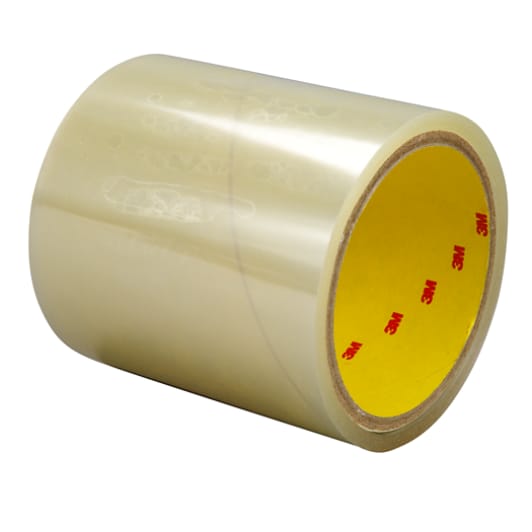

3M™ Double Coated Tape 9629FL Clear, 1 in x 60 yd 4 mil, 36 rolls per case

3M ID  70006706355    UPC#  00051111919989    3M Product Number  9629FL
3M(TM) Double Coated Tape 9629FL
3M(TM) Double Coated Tape 9629FL
3M™ Double Coated Tape 9629FL is a 6 mil 3M™ Quick Bonding Adhesive 360 tape with a 0.5 mil Clear Polyester Film (PET) carrier on a 2 mil Clear Polyester Film (PET) liner.
  • Super quick stick with excellent solvent resistance to both high and low surface energy substrates
  • Adhesive tape has exceptional adhesion properties and bonds well to high and low surface energy plastics HSE LSE such as HDPE, PP, ABS, polycarbonate, PMMA; powder coated paints. Has excellent quick stick properties.
  • High strength reduces breakage during die cutting and dispensing
  • Electronics, General Industrial, Appliances, Medical Devices, Power Tools, Automotive, Transportation, Aircraft, Airplane
  • For adhering, affixing, assembling, attaching, bonding, converting, cushioning, fastening, fixturing, gasketing, gluing, holding, identifying, ingress protecting, insulating, isolating, joining, labeling, laminating, marking, mounting, processing, sealing, securing, spacing, splicing, sticking, taping, and more.
  • Need Help?

    Questions? 1-866-556-5712

    Contact Us



    Overview

    3M™ Quick Bonding Adhesive 360 provides high bond strength and has excellent quick stick properties Up to 350F short-term heat resistance, Excellent solvent resistance, Super quick stick and high adhesion from a thin tape.

    Specifications

    Adhesion to Foam5
    Adhesion to HSE10
    Adhesion to LSE10
    Adhesion to Metal10
    Adhesive Peel Initial10
    Adhesive Peel Ultimate10
    Adhesive Tack LevelHigh
    Adhesive TypeAcrylic
    Back-Side Adhesive Thickness (mils)1.75 Milli-inch (mil)
    Back-Side Adhesive Type3M™ Quick Bonding Adhesive 360
    Brand3M
    Carrier ColorClear
    Carrier MaterialPolyester Film
    Carrier Thickness (mils)0.5 Milli-inch (mil)
    Chemical Resistance8
    ColorClear
    Face-Side Adhesive Thickness (mils)1.75 Milli-inch (mil)
    Face-Side Adhesive Type360 Quick Bonding Acrylic
    Humidity ResistanceHigh
    Industry - UseAerospace, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Specialty Vehicle, Transportation, Woodworking
    Length60 Linear Yard
    Length (metric)54.86 Linear Metre
    Meets SpecificationsFord WSS-M11P62, GM 9985281, UL 969
    Moisture ResistanceHigh
    Plasticizer ResistanceLow
    Primary LinerPolyester Film (PET)
    Primary Liner ColorClear
    Primary Liner Thickness (mils)2 Milli-inch (mil)
    Product FormRoll
    Shear Strength at 72 Degrees F (22 Degrees C)9 Pound-Force Per Square Inch
    Temp Resistance-- Lower (deg F)-100 Degree Fahrenheit
    Temp Resistance-- Upper (deg F)350 Degree Fahrenheit
    Total Thickness6 Milli-inch (mil)
    Units per Case36
    UV ResistanceHigh
    Width1 Inch
    Width (metric)25.4 Millimetre
