3M™ Double Coated Tape 415, 27 in x 36 yd 4.0 mil, 1 per inner 1 roll per cas

3M ID  70006087475    UPC#  00021200670961    3M Product Number  415

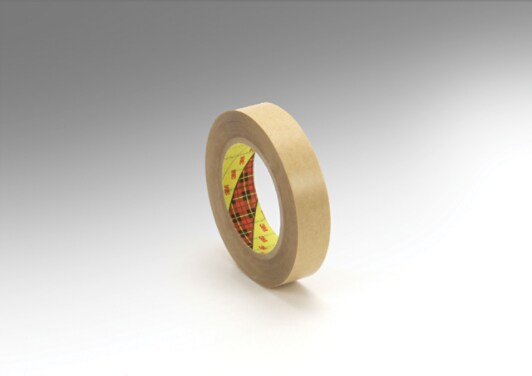

3M Double Coated Tape 415
3M™ Double Coated Tape 415 is a 4.0 mil double coated polyester with acrylic adhesive 400 on a 4.0 mil 60 lb densified kraft paper liner
  • 4 mil double coated tape on PET polyester carrier with 60 lb densified kraft DK paper liner
  • Excellent UV resistance. Good adhesion to a wide variety of materials such as HSE high surface energy, LSE low surface energy and metals. Good temperature and humidity resistance.
  • High performance splicing in printing applications. Good on films and foils.
  • Commercial Printing, General Industrial, Print and Print Finishing, Paper and Print
  • This is good for splicing, adhering, joining, affixing, bonding, mounting, holding, and attaching dissimilar materials. High speed flying splices and zero speed splices on most grades of paper such as newsprint, clay coated and corrugated stocks. Splicing
  • Need Help?

    Questions? 1-866-556-5712

    Contact Us

    Overview

    Offers a balance of initial adhesion and good holding power. Used for high-speed flying splices and zero speed splices on most grades of paper such as newsprint, clay coated, and corrugated stock.

    Specifications

    Adhesion to Foam 5
    Adhesion to HSE 5
    Adhesion to LSE 5
    Adhesion to Metal 5
    Adhesive Peel Initial 4
    Adhesive Peel Ultimate 5
    Back-Side Adhesive Thickness (mils) 1.5 Milli-inch (mil)
    Back-Side Adhesive Type 400 High Tack Acrylic
    Brand 3M
    Carrier Color Clear
    Carrier Material Polyester
    Carrier Thickness (mils) 1 Milli-inch (mil)
    Chemical Resistance 5
    China RoHS - Below MCV Yes
    Color Clear
    EU RoHS Compliant Yes
    Face-Side Adhesive Thickness (mils) 1.5 Milli-inch (mil)
    Face-Side Adhesive Type 400 High Tack Acrylic
    Humidity Resistance 8
    Industry - Use General Industrial, Paper, Print
    Length 36 Linear Yard
    Length (metric) 32.91 Linear Metre
    Master Size Length 108 Linear Yard
    Master Size Width 48 Inch
    Moisture Resistance 8
    Nominal Adhesive Thickness (mils) 4 Milli-inch (mil)
    Plasticizer Resistance Low
    Primary Liner 60# Densified Kraft Paper
    Primary Liner Color Tan
    Primary Liner Thickness (mils) 4 Milli-inch (mil)
    Product Form Roll
    Product Sub- Sub-Category Film Carrier
    Shear Strength at 72 Degrees F (22 Degrees C) 5 Pound-Force Per Square Inch
    Solvent Resistance 5
    Temp Resistance-- Lower (deg F) -40 Degree Fahrenheit
    Temp Resistance-- Upper (deg F) 180 Degree Fahrenheit
    Units per Case 1
    UV Resistance High
    Width 27 Inch
    Width (metric) 685.80 Millimetre
