3M™ Double Coated Paper Tape 401M, 3/4 in x 36 yd 9.0 mil, 48 rolls per case Bulk

3M ID  70006703493    UPC#  00051111917152    3M Product Number  401M

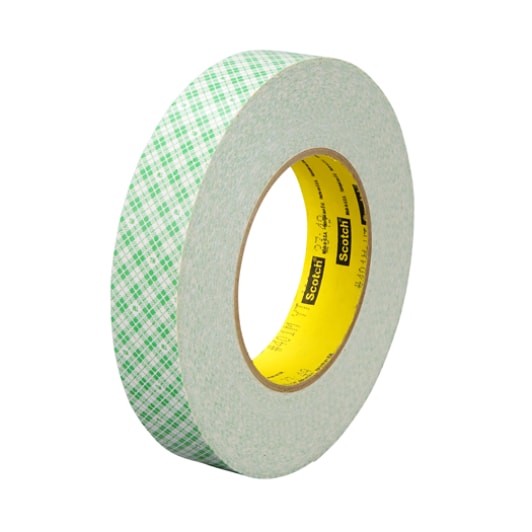

3M(TM) Double Coated Paper Tape 401M
3M™ Double Coated Paper Tape 401M is a 9.0 mil double coated paper tape with rubber adhesive 860 on a 3.0 mil green plaid paper liner.
  • 9 mil tape for temporary attaching or fixturing. High initial bond strength.
  • Natural rubber double coated tape with heavy paper carrier for increased strength and dimensional stability.
  • Offers good initial adhesion to a variety of surfaces. For indoor and room temperature applications.
  • General Industrial, General Purpose, Multi-use and Multipurpose Applications
  • Used for mounting rubber or photopolymer printing plates or other temporary fixturing
    		•
    Need Help?

    Questions? 1-866-556-5712

    Contact Us

    Overview

    Support
    Excellent balance of high initial adhesion and good holding power to a wide variety of material. The paper carrier has been specially treated to improve its strength and removability characteristics from high internal strength surfaces.

    Specifications

    Adhesion to Foam 5
    Adhesion to HSE 8
    Adhesion to LSE 8
    Adhesion to Metal 8
    Adhesive Peel Initial 9
    Adhesive Peel Ultimate 10
    Back-Side Adhesive Thickness (mils) 4.5 Milli-inch (mil)
    Back-Side Adhesive Type 860 Natural Rubber
    Brand 3M
    Carrier Color White
    Carrier Material Paper
    Chemical Resistance 1
    Color Natural
    Face-Side Adhesive Thickness (mils) 4.5 Milli-inch (mil)
    Face-Side Adhesive Type 860 Natural Rubber
    Humidity Resistance 1
    Industry - Use General Industrial
    Length 36 Linear Yard
    Length (metric) 32.91 Linear Metre
    Master Size Length 108 Linear Yard
    Master Size Width 22 Inch
    Moisture Resistance 1
    Nominal Adhesive Thickness (mils) 9 Milli-inch (mil)
    Primary Liner 54# Densified Kraft Paper
    Primary Liner Color White with Green Plaid
    Primary Liner Thickness (mils) 3 Milli-inch (mil)
    Product Form Roll
    Product Sub- Sub-Category Paper Carrier
    Shear Strength at 72 Degrees F (22 Degrees C) 6 Pound-Force Per Square Inch
    Solvent Resistance 1
    Temp Resistance-- Lower (deg F) -40 Degree Fahrenheit
    Temp Resistance-- Upper (deg F) 180 Degree Fahrenheit
    Units per Case 48
    UV Resistance 1
    Width 0.75 Inch
    Width (metric) 19.05 Millimetre
